Work Bench System – Motor Hanger Components

Modular components for the Foredom Work Bench System, a flexible bench organization and motor support setup designed for jewelers, carvers, lab users, and precision fabricators. This system goes beyond a basic motor hanger by allowing you to configure lighting, tool supports, and motor positioning to suit your workspace and workflow.

The system is built around a required main support assembly that accepts a variety of accessory arms and attachments.

Main Support Component (Standard Configuration):

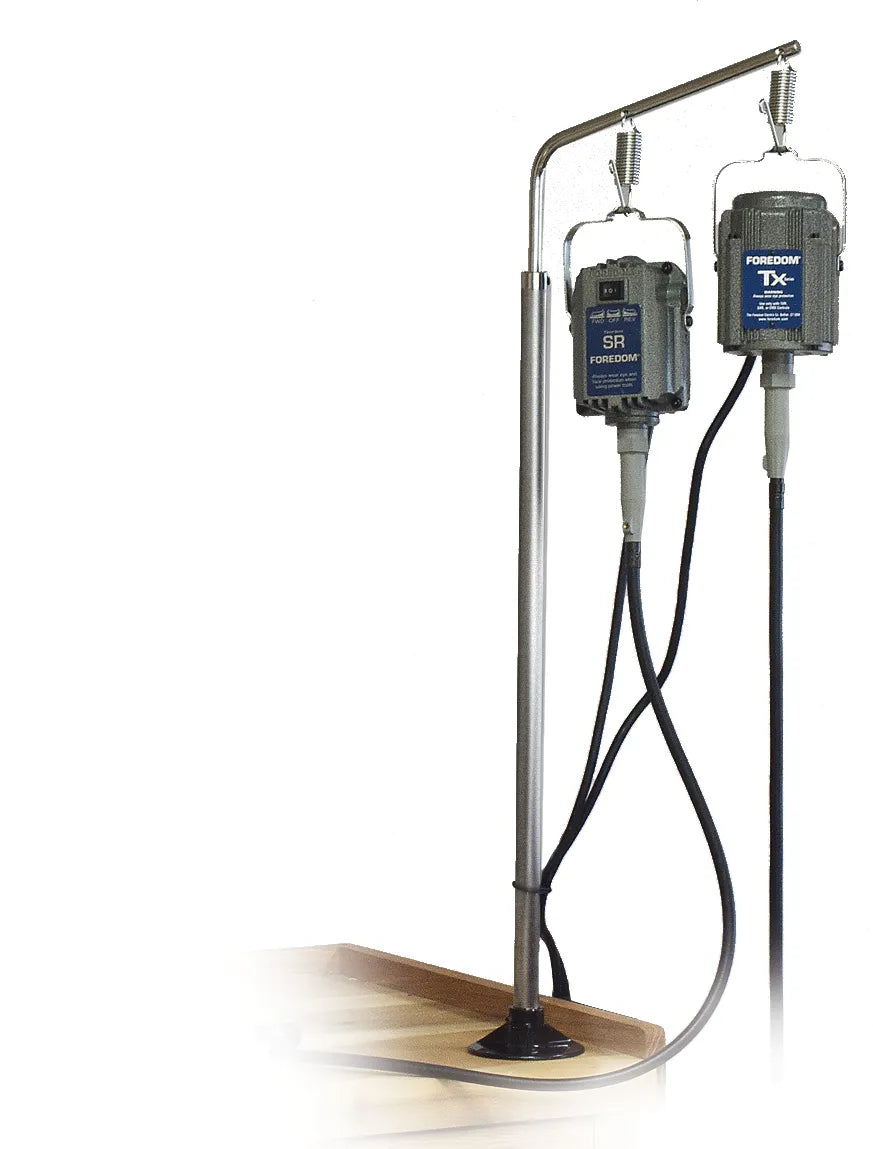

Double Motor Hanger Assembly (MAMH-13) — serves as the primary support structure for the Work Bench System unless an alternate support rod option is selected.

• Upright support rod: 25-3/4″ long × 0.875″ diameter
• Angled extension rod with two spring safety clips for suspending one or two motors
• Includes base mounting plate and screws for secure bench installation
• Adjustable positioning allows motors to hang approximately 33″–38″ above the bench surface and about 20″–28″ to the left or right of the work area for ergonomic flex shaft operation

Multiple component options are available to expand and customize the system.
